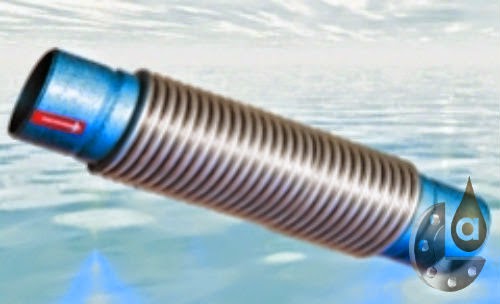

JUAL EXPANSION JOINT PIPE END

Material: PARTS MATERIAL 400SP 400P 1 Bellows S.S.304 / S.S.316 ◎ ◎ 2 Internal Sleeve S.S.304 / S.S.316 ◎ 3 Tube End C.S. / S.S.304 / S.S.316 ◎ ◎

SPECIFICATION:                                                                                                               mm SIZE TOTAL BELLOWS AXIAL MOVEMENT Max. Working Pressure AXIAL Spring Rate Effective Area LENGTH O.D. CORR. PLY Inch mm Inch mm Inch mm No. No. Inch mm BAR PSI N/mm cm2 inch2 1/2” 15 13.78 350 1.25 31.7 40 2 2 50 25 363 11 6 0.9 3/4” 20 13.78 350 1.25 31.7 40 2 2 50 25 363 11 6 0.9 1 25 13.78 350 1.48 37.5 36 2 2 50 25 363 22 8 1.3 1.1/4” 32 13.78 350 1.85 47.0 36 2 2 50 25 363 25 13 2.1 1.1/2” 40 13.78 350 2.24 57.0 32 2 2 50 25 363 36 20 3.1 2” 50 13.78 350 2.83 72.0 24 2 2 50 25 363 52 32 4.9 2.1/2” 65 13.78 350 3.54 90.0 20 2 2 50 25 363 90 49 7.6 3” 80 13.78 350 4.06 103.0 20 2 2 50 25 363 105 67 10.3 4” 100 13.78 350 5.39 137.0 16 2 2 50 25 363 152 122 19.0 5” 125 13.78 350 6.38 162.0 15 2 2 50 25 363 161 176 27.0 6” 150 13.78 350 7.72 196.0 14 2 2 50 25 363 230 258 40.0 8” 200 13.78 350 9.65 245.0 13 2 2 50 16 232 272 414 64.1 3 25 363 406 412 63.8 10” 250 13.78 350 12.09 307.0 12 2 2 50 16 232 418 656 101.7 3 25 363 623 653 101.3 12” 300 13.78 350 14.02 356.0 12 2 2 50 16 232 508 898 139.2 14.13 359.0 3 25 363 911 911 141.1 14” 350 13.78 350 16.41 417.0 6 2 2 50 16 232 535 1171 181.6 16.47 418.0 3 25 363 842 1179 182.8 16” 400 13.78 350 18.57 472.0 6 2 2 50 16 232 628 1531 237.3 18.63 473.0 3 25 363 988 1540 238.7 18” 450 13.78 350 20.57 522.0 6 2 2 50 16 232 692 1903 295.0 20.63 524.0 3 25 363 1089 1914 296.6 20” 500 13.78 350 22.83 580.0 5 2 2 50 16 232 1053 2324 360.3 15.75 400 22.91 582.0 3 25 363 1578 2333 361.6 22” 550 13.78 350 24.83 631.0 5 2 2 50 16 232 1144 2779 430.7 15.75 400 24.91 633.0 3 25 363 1714 2788 432.1 24” 600 13.78 350 26.83 682.0 5 2 2 50 16 232 1236 3274 507.4 15.75 400 26.91 684.0 3 25 363 1853 3284 509.0
